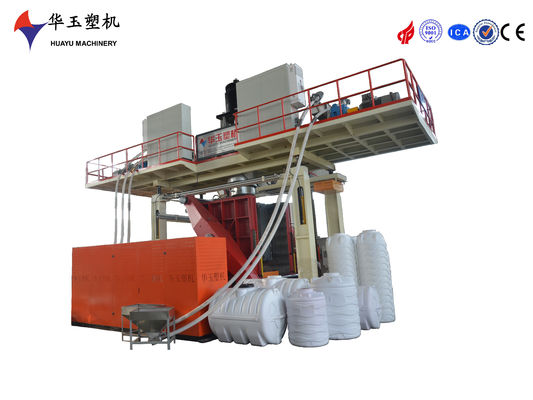

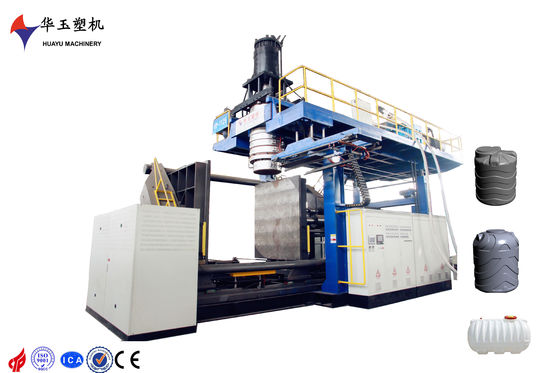

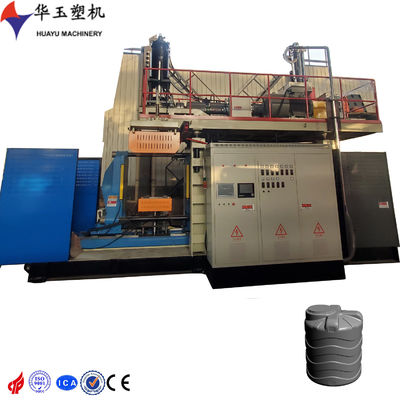

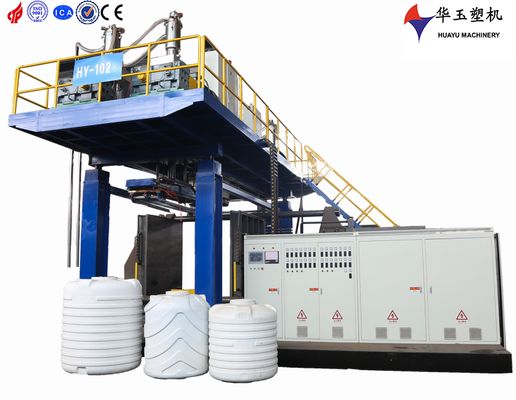

2000L 12-Layer Water Tank Blow Molder – Precision Engineered IBC Tank Blow Molding Machine for Large-Capacity Production
| محل منبع | چین |
|---|---|
| نام تجاری | HUAYU |
| گواهی | ISO9001 CE |
| شماره مدل | HYBM-500-2000L، 12 لایه |
| مقدار حداقل تعداد سفارش | 1 مجموعه |
| قیمت | 360000 USD |
| جزئیات بسته بندی | برای حمل و نقل کانتینر در بسیاری از قسمت ها جدا شود |
| زمان تحویل | 4 ماه |
| شرایط پرداخت | T/T، L/C |
| قابلیت ارائه | 1Set 120days |
برای نمونه ها و کوپن های رایگان با من تماس بگیرید.
WhatsApp:0086 18588475571
وکت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر شما هر گونه نگرانی دارید، ما 24 ساعت کمک آنلاین ارائه می دهیم.
xجزئیات محصول
| ولتاژ | انتظار | قدرت کل | 648.5 کیلو وات |
|---|---|---|---|
| قدرت متوسط | 320 کیلو وات | بهره وری | 10 تا 24 عدد در ساعت |
| قطر پیچ | 100mm*7 | نسبت L/D پیچ | 28 ： 1 |
| ظرفیت انباشته | 60 کیلوگرم | Max. حداکثر Mould Size اندازه قالب | 1600*2000mm (W*H) |
| حداکثر فشار هوا | 0.8 مگاپاسکال | مصرف هوا | 2.3m3/دقیقه |
| برجسته کردن | 12-Layer Co-Extrusion Water Tank Blow Molder,2000L Large-Capacity Blow Molding Machine,Precision Engineering IBC Tank Blow Molding Machine,2000L Large-Capacity Blow Molding Machine,Precision Engineering IBC Tank Blow Molding Machine |
||
توضیحات محصول
2000L 12-Layer Water Tank Blow Molder – Precision Crafted
Core Advantages
- 12-Layer Co-Extrusion Superiority: Multi-layer structure ensures exceptional barrier performance, pressure resistance and durability, ideal for long-term water storage without leakage or deformation.
- 2000L Large-Capacity Efficiency: Engineered to mold full-size 2000L water tanks in one single cycle, drastically cutting production time and boosting overall throughput.
- Precision Engineering for Consistency: High-precision control system guarantees uniform wall thickness across every layer, eliminating defects and ensuring stable product quality batch after batch.
- Industrial-Grade Reliability: Robust frame and high-quality components are built to withstand heavy-duty continuous operation, minimizing downtime and maintenance costs.
- Versatile Material Compatibility: Adaptable to a wide range of raw materials including HDPE, PP and recycled plastics, meeting diverse production needs and sustainability goals.
- User-Centric Intelligent Operation: Intuitive control interface simplifies operation and parameter adjustment, reducing the learning curve for operators and improving production efficiency.
Technical Specifications
Hydraulic System
| Main Oil Tank Capacity | 1200L | Servo motor, less energy consumption, high efficiency, low noise |
| Main Oil Pump | Gear Pump 163CC | |
| Main Oil Pump Motor | 48kW | |
| Servo Oil Tank Capacity | 200L | |
| Servo Oil Pump Model | Plunger Pump 22 | |
| Servo Oil Pump Motor | 7.5kW |
Electronic System
| Main Operation Panel | Touch Screen 12" | |
| Control System | PLC | |
| Thickness Control Points | 200 Points | |
| Temperature Control | PLC Module |
