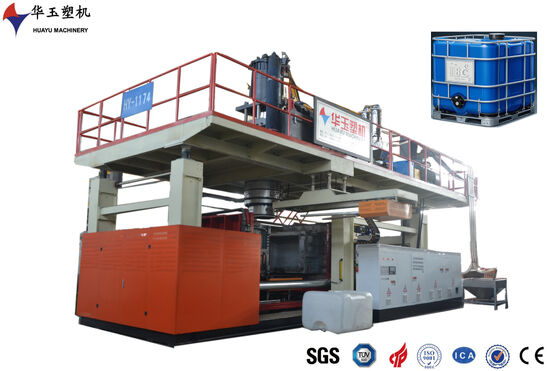

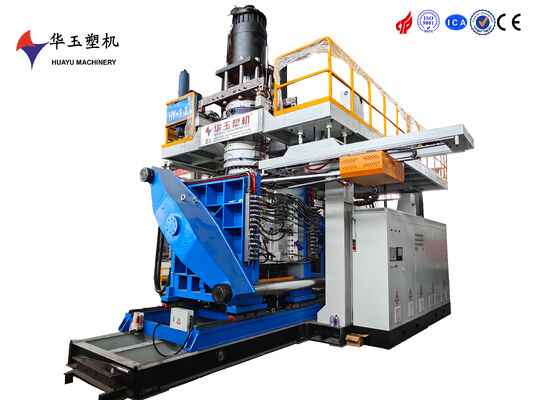

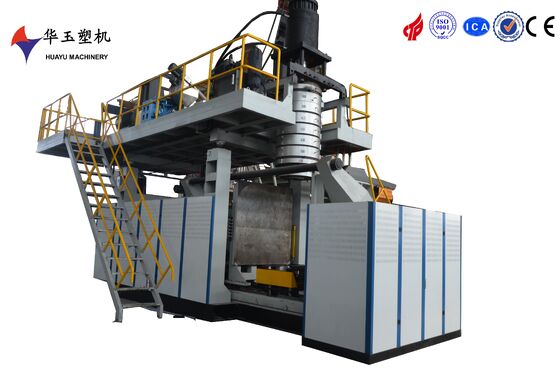

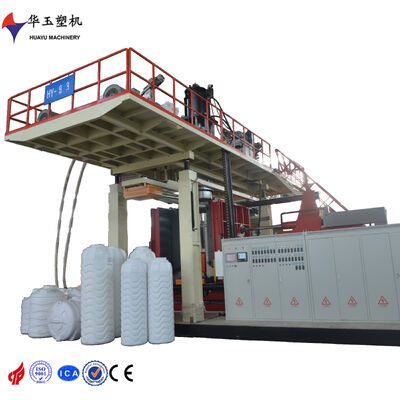

3000L 5-Layer Large Lightweight Water Tank Blow Molding Machine with Lightweight Cooling System

محل منبع چین
نام تجاری HUAYU
گواهی ISO9001 CE
شماره مدل HYBM3000-5
مقدار حداقل تعداد سفارش 1 ست
قیمت 380000 USD
جزئیات بسته بندی برای حمل و نقل کانتینر در بسیاری از قسمت ها جدا شود
زمان تحویل 4 ماه
شرایط پرداخت T/T ، L/C
قابلیت ارائه 1Set 120days

برای نمونه ها و کوپن های رایگان با من تماس بگیرید.

WhatsApp:0086 18588475571

وکت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر شما هر گونه نگرانی دارید، ما 24 ساعت کمک آنلاین ارائه می دهیم.

x
جزئیات محصول
نوع ماشین ماشین ساخت بطری پلاستیکی با سرعت بالا صفحه لمسی زیمنس
شیر سروو چلیک ظرفیت پلاستیک سازی 800 کیلوگرم در ساعت
جعبه دنده گومائو روش تمیز کردن تمیز کردن آسان
ماده قیف فولاد ضد زنگ سوئیچ هوا اشنایدر
دامنه ظرفیت 500--3000L ، 5 لایه سیستم خنک کننده قالب خنک کننده هوا
حداکثر فشار هوا 0.8MPa ظرفیت 1000 لیتر
موتور تغذیه 2.2/2.2/2.2kW ضمانت 1 سال
نوع قالب یک ایستگاه
برجسته کردن

3000L water tank blow molding machine,5-layer lightweight water tank machine,blow molding machine with cooling system

,

5-layer lightweight water tank machine

,

blow molding machine with cooling system

می توانید محصولات مورد نیاز خود را علامت بزنید و در صفحه پیام با ما ارتباط برقرار کنید.
پیام بگذارید
توضیحات محصول

This lightweight blow molding machine with a 3000L capacity and 5-layer co-extrusion is designed for efficient production of lightweight plastic products. The water tank system ensures efficient cooling and heat dissipation, maintaining optimal operating temperatures and enhancing production efficiency. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Its lightweight design and reliable performance make it suitable for industries requiring lightweight plastic products. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs. The integrated lightweight cooling system further reduces energy consumption, making it an ideal choice for manufacturers looking to optimize their production processes while minimizing environmental impact.

 Clamping  System

platen size

2200*2400*70mm(W*H*T)

smooth running, no noise; the clamping force is big

clamping cylinder

200+300*2

clamping cylinder stroke

2100mm



clamping force

2200KN



distance between platens

1100-3200mm



ax. mould size

1700*2200mm(W*H)



 blowing and cooling system

stretching stroke

according to products



blow pin up/down stroke

600mm



air seat stroke

400mm



imum air pressure

0.8Mpa



air consumption

3m3/min



Cooling method

Circulating water



Water pressure

0.3MPa



Cooling water consumption

75m3/h
