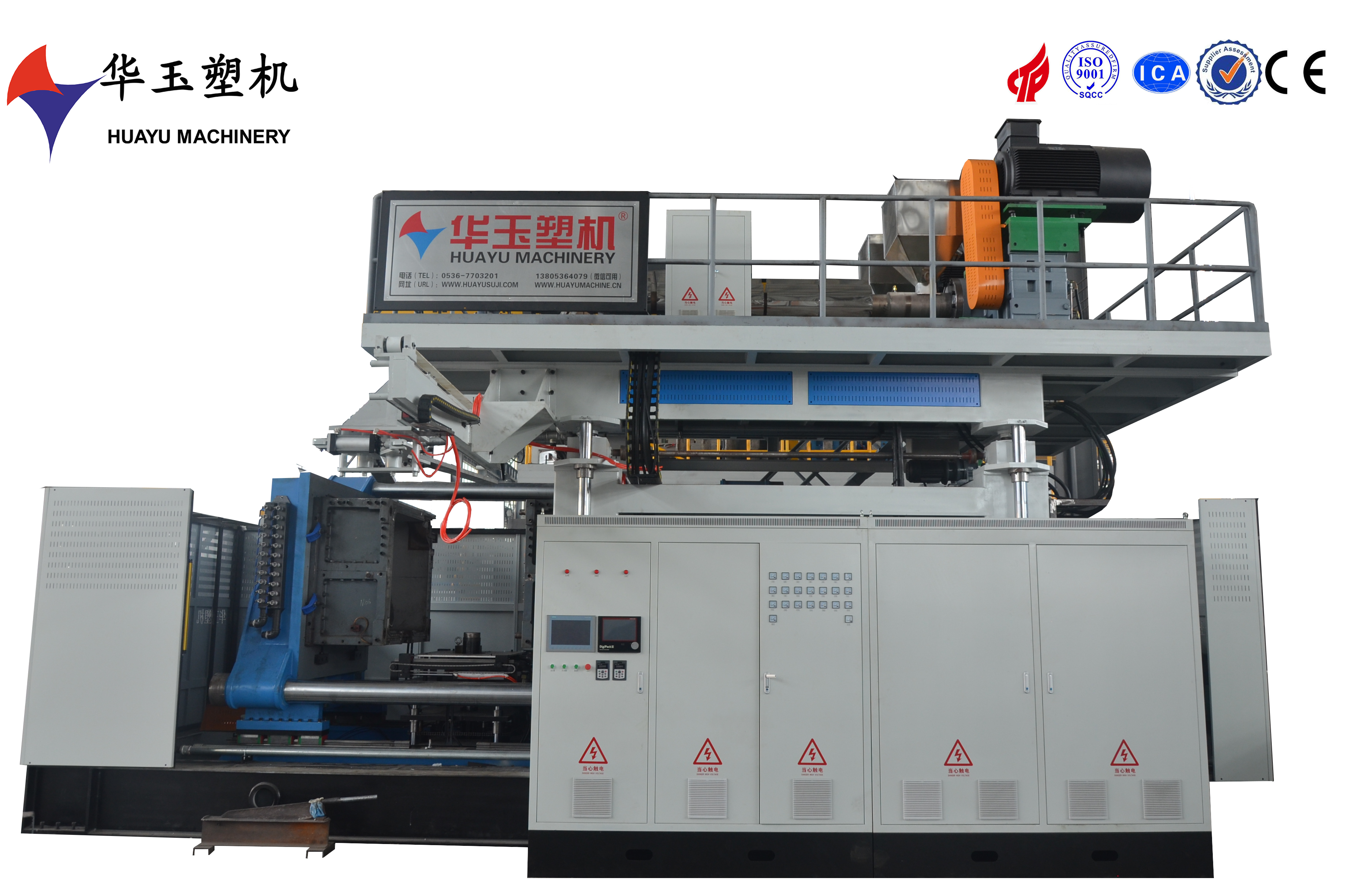

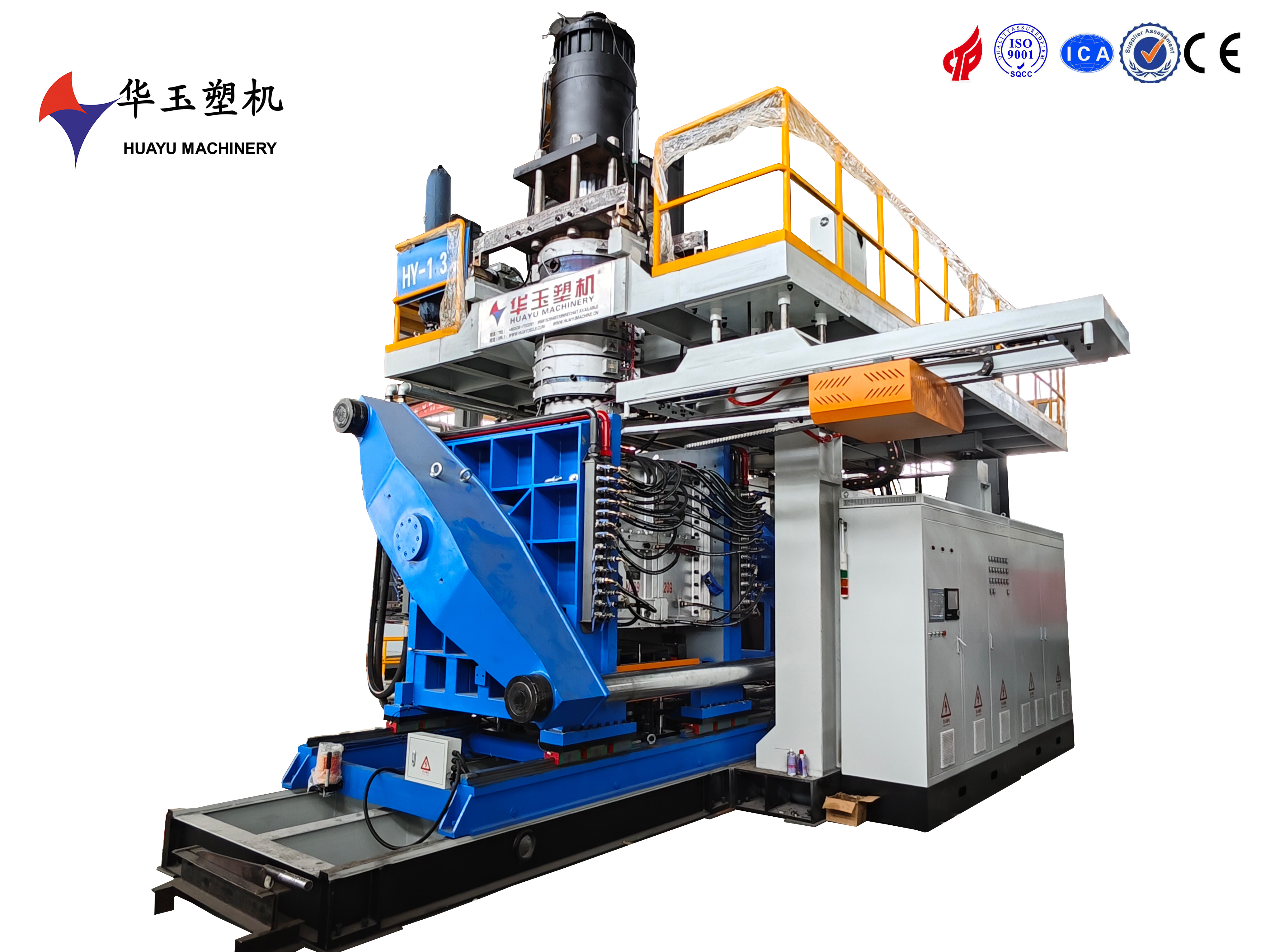

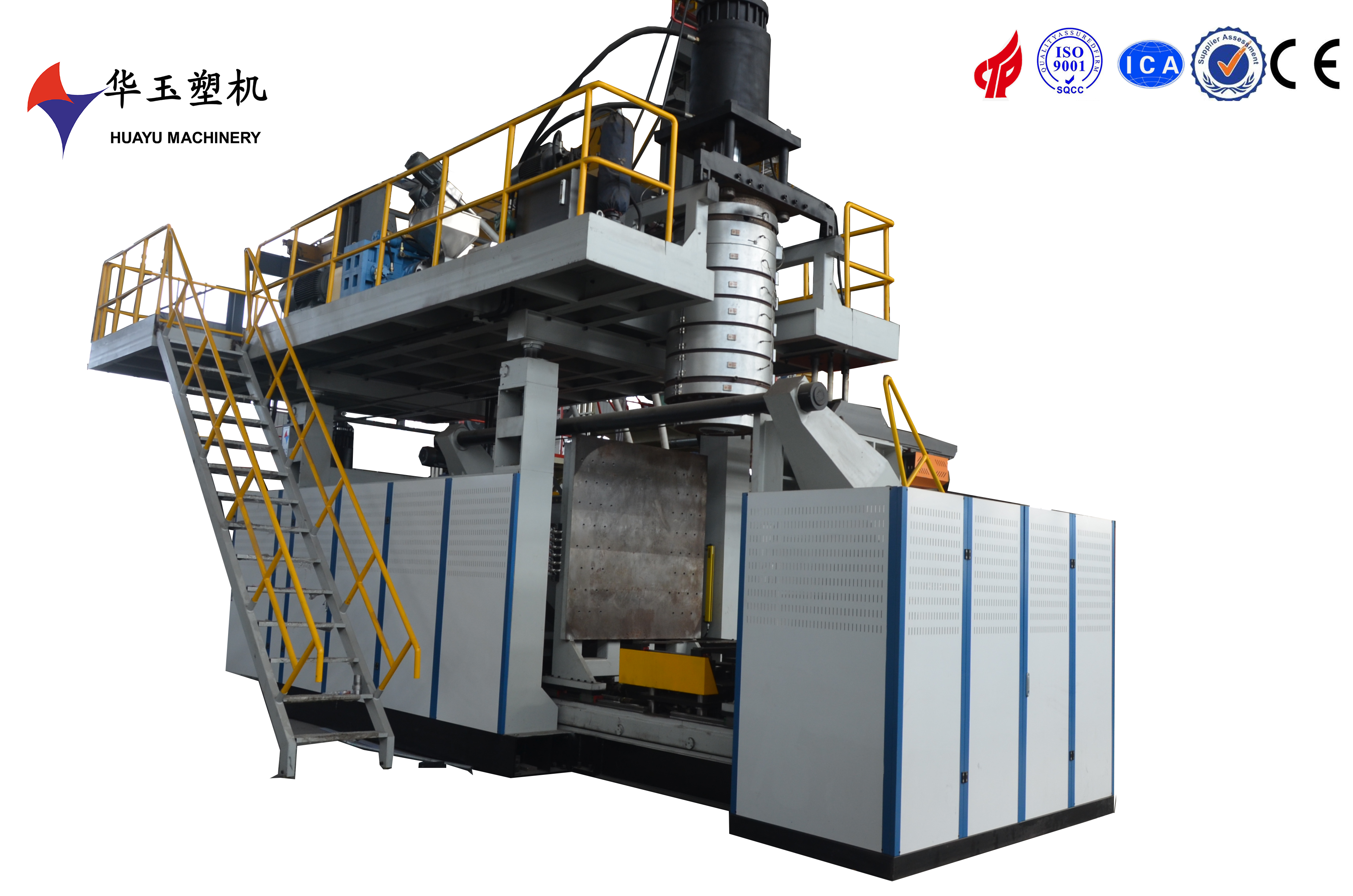

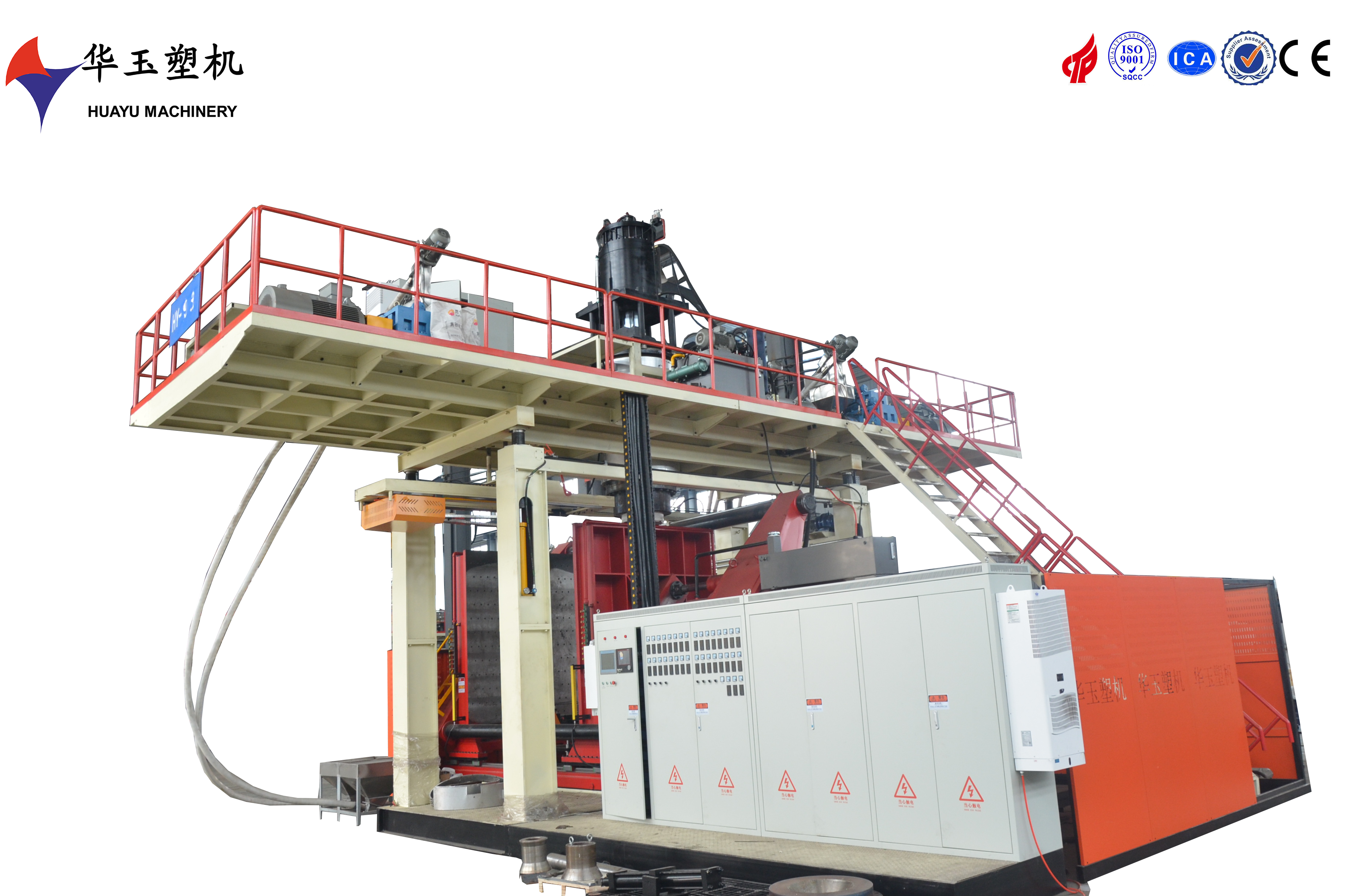

5000L 6-Layer Large Fully-Automatic Water Tank Blow Molding Machine with Intelligent

محل منبع چین
نام تجاری HUAYU
گواهی ISO9001 CE
شماره مدل HYBM5000-6
مقدار حداقل تعداد سفارش 1 ست
قیمت 540000 USD
جزئیات بسته بندی برای حمل و نقل کانتینر در بسیاری از قسمت ها جدا شود
زمان تحویل 4 ماه
شرایط پرداخت L/C ، T/T
قابلیت ارائه 1Set 120days

برای نمونه ها و کوپن های رایگان با من تماس بگیرید.

WhatsApp:0086 18588475571

وکت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر شما هر گونه نگرانی دارید، ما 24 ساعت کمک آنلاین ارائه می دهیم.

x
جزئیات محصول
سیستم کنترل PLC وزن 70T
سرویس پس از فروش مهندسان موجود در ماشین آلات خدمات در خارج از کشور موتور اکسترودر 110/90*2/15*3
ظرفیت تولید 10 تا 15 تکه در ساعت شیر سروو چلیک
مناطق گرمایشی 6 متوسط مصرف 280 کیلووات
سیستم خنک کننده خنک کننده آب بعد ماشین 12*11*8.5
دامنه ظرفیت 500-2000 لیتر مواد قابل استفاده HDPE
قطر پیچ 120 میلی متر قدرت 16.5 کیلووات
اندازه پلاتین 1800*2200*70mm
برجسته کردن

5000L fully-automatic water tank machine,6-layer blow molding machine,intelligent water tank molding machine

,

6-layer blow molding machine

,

intelligent water tank molding machine

می توانید محصولات مورد نیاز خود را علامت بزنید و در صفحه پیام با ما ارتباط برقرار کنید.
پیام بگذارید
توضیحات محصول

This fully-automatic blow molding machine with a 5000L capacity and 6-layer co-extrusion is designed for large-scale production. The water tank system ensures efficient cooling and heat dissipation, maintaining optimal operating temperatures and enhancing production efficiency. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Its fully-automatic operation minimizes labor requirements and maximizes production efficiency. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.

Basic Specification

applicable material

HDPE


China·HUAYU

capacity range

1000-3000L,3layers

total weight

80T

Voltage

Pending

total power

437kw

average power

280kw

Machine dimension (L*W*H)

9*10*7.5

productivity

8-20pcs/h

Auto Feeder

hopper material

stainless steel

Stable performance, easy maintenance

feeding type

spring loaded

feeding motor

11kw
